Find where memory goes

This is the heart of pytest-benchmem. A peak number tells you which benchmark is heavy, not where the memory goes — so keep the memray profile for it and render the allocating call paths. Now you know exactly what to optimize; change the code, re-run, and confirm the drop.

Keep a profile for the offenders

Add --benchmark-memory-profile DIR to keep the memray profile (.bin) for each regressing id:

pytest --benchmark-only --benchmark-memory \
       --benchmark-memory-compare-fail=peak:10% \
       --benchmark-memory-profile profiles/
# -> profiles/<id>.bin for every id over threshold; clean ids get nothing

The run prints a ready-to-paste command per saved profile:

benchmem: saved 1 memory profile(s) to profiles/ — render with:
    memray flamegraph profiles/test_solve.bin

The .bin is memray's raw capture, so the same file also feeds memray tree / summary / stats — pick the lens you want. Off by default (retaining .bins costs disk), and in CI it's the natural artifact to upload and render locally on the PR.

Which benchmarks get a profile follows the gate:

  • with --benchmark-memory-compare-fail → only the regressing ids (keep the failing run cheap and the output small);
  • without a fail-gate → every measured benchmark — drop the gate and keep --benchmark-memory-profile DIR alone to archive them all, regressing or not.

One-step render — benchmem flamegraph

Instead of finding the right .bin and remembering the memray subcommand, point benchmem flamegraph at the profile dir and name the test (an exact id or a unique substring):

benchmem flamegraph profiles/ test_solve          # → profiles/test_solve.flamegraph.html
benchmem flamegraph profiles/ --worst peak --open # auto-pick the heaviest, open it
benchmem flamegraph profiles/ test_solve --report tree   # terminal lens instead of HTML

--worst peak|allocated|allocations reads the metric straight from each .bin and renders the heaviest, so you don't have to look up the id. --report passes through to any memray reporter (flamegraph default, plus table / tree / summary / stats); HTML reports land next to the .bin (override with -o, overwrite with -f).

A worked example — building a k-d tree

The captures below profile a real, tested function (examples/kdtree.py): building a 2-D k-d tree, which recursively splits points by alternating axes — the backbone of nearest-neighbour search. The naive build commits a classic mistake: every node keeps a reference to the whole sublist it was split from, so the finished tree retains O(n·log n) points instead of O(n).

def build_kdtree_naive(points, depth=0):
    if not points:
        return None
    ordered = sorted(points, key=lambda p: p[depth % 2])
    mid = len(ordered) // 2
    node = RegionNode(ordered[mid], ordered)   # ← the leak: keeps the whole sublist alive
    node.left = build_kdtree_naive(ordered[:mid], depth + 1)
    node.right = build_kdtree_naive(ordered[mid + 1 :], depth + 1)
    return node

Because the work is recursive, the flamegraph is a proper tree — every build_kdtree_naive frame is a subtree, and the per-level sorted(...) and slice allocations are what pile up:

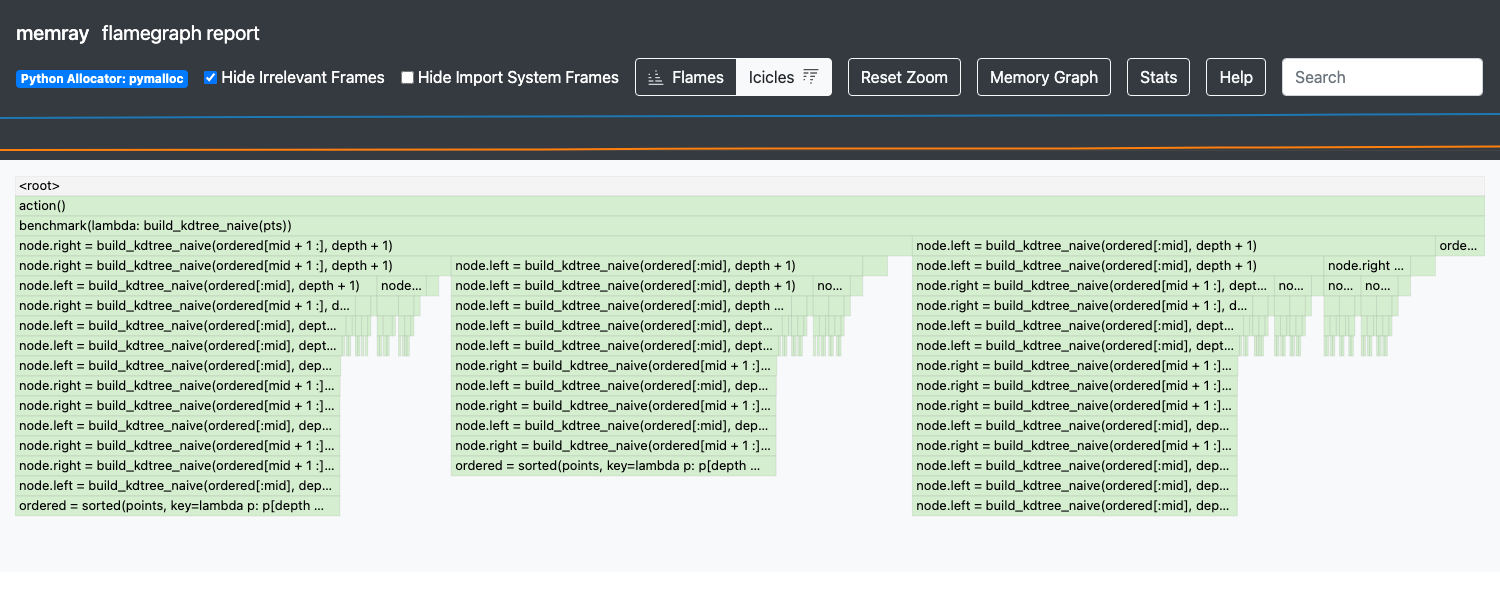

memray flamegraph: a deep recursive pyramid of build_kdtree_naive frames, one subtree per recursive call

summary is the fastest read in the terminal — it ranks every frame by the memory it owns, so the offender tops the Own Memory % column. Here build_kdtree_naive owns 95% of peak — the retained sublists:

Colored benchmem flamegraph summary table: build_kdtree_naive tops the Own Memory column at 95% of peak

The fix keeps only the split point and its children — nothing else is retained:

def build_kdtree(points, depth=0):
    if not points:
        return None
    ordered = sorted(points, key=lambda p: p[depth % 2])
    mid = len(ordered) // 2
    return Node(
        ordered[mid],
        build_kdtree(ordered[:mid], depth + 1),
        build_kdtree(ordered[mid + 1 :], depth + 1),
    )

Re-run and confirm the drop — peak falls by ~80% (the tree is back to O(n)), and the test asserts both builds produce the identical tree.

Native-backed workloads: attribute the C/Rust memory

By default the capture records Python frames only. For a native-backed workload (polars/Rust, numpy/C, solver bindings) the bulk of peak memory is allocated inside the extension, so the flamegraph collapses it into one unresolved ??? at ??? bucket — exactly the part you wanted to localize. Add --benchmark-memory-profile-native to also capture native stacks:

pytest --benchmark-only --benchmark-memory \
       --benchmark-memory-profile profiles/ \
       --benchmark-memory-profile-native

Now the flamegraph attributes memory to the real frames (e.g. jemalloc _rjem_je_* under rayon workers, reached via the polars write path) instead of an opaque native bucket. It's opt-in — native traces cost runtime and produce bigger .bins — and only applies on the --benchmark-memory-profile path. Scope it to one test with @pytest.mark.benchmem(profile_native=True) instead of the suite-wide flag; benchmem flamegraph --native asserts a profile actually carries native traces and errors with the fix if it doesn't.

Symbols sharpen native frames

Native traces resolve against interpreter/library symbols. On a stripped build memray warns No symbol information was found for the Python interpreter; frames then show as mangled Rust/<unknown> but stay attributable by symbol name (_rjem_je_*, rayon_*). A debug-symbol interpreter sharpens the picture.
